SCHURTER DG11 Modules Enhanced with Magnetic Short-Circuit Protection
Rutronik introduces SCHURTER DG11 modules with magnetic release in TA35 breaker, delivering fuse-free short-circuit protection and high IP67-rated reliability for industrial and medical applications.
www.rutronik.com

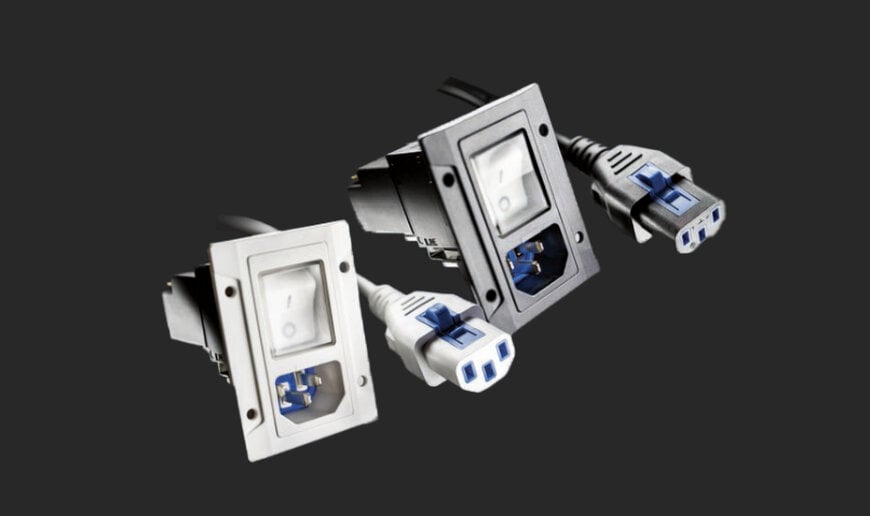

The DG11 series power entry modules from SCHURTER in the Rutronik portfolio are receiving some excellently thought-out upgrades. The combination elements now feature a magnetic release, which makes additional fuses obsolete and ensures highly reliable protection against short circuits. The pre-wired combination elements tolerate an operating temperature of -25 °C to +60 °C and come in thermoplastic housings (UL94V-0 standardized). They are particularly suitable for devices of protection classes I and II according to IEC61140 – ideal for use in applications with the highest reliability and safety standards in industry and medical technology.
The proven SCHURTER DG11 is now available with a magnetic release in the integrated TA35 circuit breaker. This provides reliable protection against very high overcurrents (short circuits), eliminating the need for additional fuses.The recessed rocker switch prevents accidental shutdown.
Completely optimized, the appliance plugs feature upgrades such as special sealing elements (gaskets) on the plug and mains connection cable, achieving a very high IP67 protection rating. The plugs are also equipped with V-Lock pull-out protection as standard to prevent accidental interruption of the power supply.
Benefits at a glance:
- Standard V-Lock cord retention
- Ratings IEC 10 A / 250 VAC; 50 Hz
- Ratings UL/CSA 15 A / 250 VAC; 60 Hz
- Front Side IP40 / IP67 acc. to IEC 60529
- Various mounting options
- Device protection switch with thermal or thermal-magnetic module available
- For use on devices with IEC / UL62368-1 standard
Main application areas:
For applications in harsh environments with the highest safety and reliability requirements
- Industry
- Medical technology
For more information to the DG11 series power entry modules from SCHURTER and a direct ordering option, please visit our e-commerce platform.
