Toshiba Launches 80V eFuse IC for 48V Industrial Power Systems

Toshiba Electronic Devices & Storage Corporation is expanding its semiconductor portfolio with the release of an 80V-rated electronic fuse integrated circuit. The component provides active power line protection for high-voltage industrial applications, supporting the operational safety of hardware in factory automation, robotics, and data center environments.

Shift to 48V power architecture
Driven by the requirement for higher power output and electrical efficiency, industrial hardware designs are migrating toward 48V power architectures. This transition within servers, robotics, and factory automation equipment necessitates power line protection circuits capable of managing elevated voltage tolerances while maintaining compact board layouts. The newly released electronic fuse accommodates this shift by supporting an operating voltage range from 4.7V to 75V, enabling its integration into 24V, 48V, and 54V power ecosystems.

Semiconductor fault protection mechanisms
The electronic fuse operates as a semiconductor-based safeguard, integrating multiple fault response mechanisms into a single chip to replace conventional physical fuses. Operating thresholds for overcurrent limiting and overvoltage output shutdown can be manually configured using external resistors. The architecture also incorporates true reverse current blocking and input reverse polarity protection using external MOSFETs to isolate downstream circuits from abnormal currents. Additional built-in diagnostic telemetry includes a FLAG signal output for external fault notification, a power-good indicator to verify output voltage status, and an output current monitoring channel.

Thermal mitigation and package integration

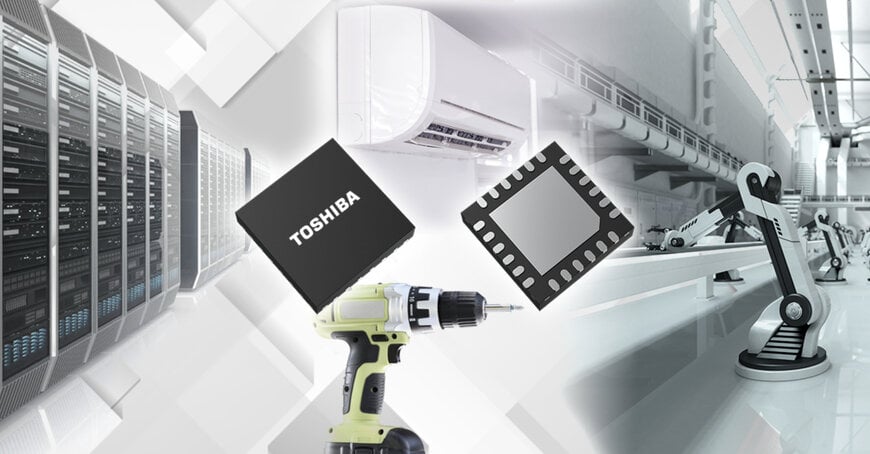

To minimize power dissipation across the circuit and improve equipment efficiency, the device maintains a low typical on-resistance of 44.5 milliohms. In the event of an unexpected short circuit or thermal anomaly, an integrated thermal shutdown mechanism immediately interrupts the output. Recovery from these fault states is configurable between an automatic retry sequence or a latch-off mode requiring an external signal reset. The hardware is enclosed in a VQFN24D surface-mount package measuring 4.0 by 4.0 millimeters with a maximum thickness of 0.9 millimeters, reducing the printed circuit board footprint required for industrial power line protection arrays.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement

In the industrial semiconductor market, 80V-rated electronic fuses compete directly with products from manufacturers such as Texas Instruments and STMicroelectronics, which produce comparable protection components for 48V server and telecommunications rails. Benchmark criteria for these devices rely on maximum voltage rating, package footprint, and typical on-resistance. A resistance of 44.5 milliohms aligns with competitive standards for minimizing thermal losses in 48V systems, while the 4.0 by 4.0 millimeter package addresses the high-density constraints of modern server power boards. Unlike conventional glass tube or resettable polymeric positive temperature coefficient fuses, these active semiconductor components provide critical telemetry signals and adjustable current-limiting thresholds required by automated monitoring systems in data centers and industrial manufacturing facilities.

Edited by Natania Lyngdoh, Induportals editor, assisted by AI.
