Automotive Gate Drive Transformers for High Voltage Vehicle Platforms

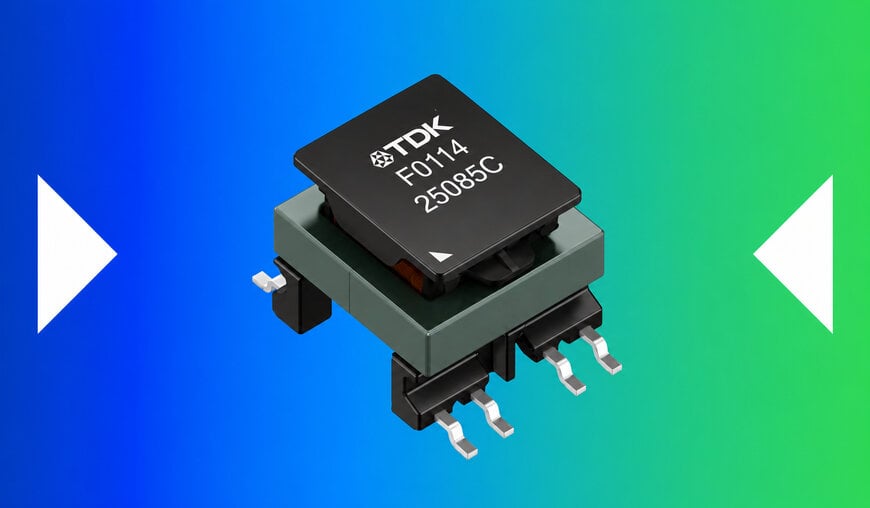

The rapid advancement of electrified mobility platforms necessitates highly robust isolation components capable of handling high battery system voltages. The E13 EM series, consisting of insulated gate bipolar transistor and field effect transistor gate drive transformers, addresses the critical need for electrical safety and physical size minimization within next-generation vehicle power stages. These compact components enable precise signal transmission and galvanic isolation inside high-performance traction inverters and compact direct current to direct current converters.

By engineering these transformers to meet stringent physical isolation constraints, manufacturers can enhance safety margins within the broader automotive data ecosystem where intelligent monitoring and power conversion intersect. These transformers are optimized for integration into powertrain systems operating on 500 V battery architectures. The introduction of these units effectively reduces total installation volume while maintaining high dielectric strength under prolonged operational stresses.

Technical Parameters and Architecture Support
The structural foundation of this transformer series relies on a manganese-zinc ferrite core configuration packed into a surface mount design. Each component features a standardized footprint measuring 18.6 by 14.6 millimeters with a maximum profile height of 12 millimeters. The series accommodates a broad performance envelope, supporting typical switching frequencies from 100 kilohertz up to 400 kilohertz, allowing compatibility with modern silicon-based and wide-bandgap power semiconductors.

Engineers can deploy these components within distinct power topologies as the series offers specific variants for both flyback and push-pull configurations. Inductance metrics span from 1.8 microhenries up to 240 microhenries, complemented by saturation current thresholds that reach up to 9 amperes. The optimized internal winding arrangement directly minimizes leakage inductance, securing stable signal transfer characteristics and lowering power dissipation during high-speed switching operations.

Advanced Safety Insulation Compliance
Electrical safety validation for the component line follows international regulatory guidelines for industrial and automotive environments. The units maintain creepage margins up to 6.3 millimeters alongside clearance gaps up to 5.5 millimeters. These dimensional attributes ensure compliance with basic insulation criteria at a working voltage of 500 V direct current, alongside reinforced insulation compliance at 300 V, according to IEC 60664-1 and IEC 61558-2-16 industrial safety benchmarks.

Environmental endurance tests certify these transformers for continuous operation across an ambient temperature band ranging from -40 degrees Celsius up to +150 degrees Celsius. The hardware fulfills the reliability and stress testing criteria dictated by the AEC-Q200 Revision E automotive standard. Furthermore, insulation stability is demonstrated by a transient overvoltage rating of 2500 V and a verified partial discharge extinction threshold of 900 V.

Additional Context: This section details technical specifications and competitive benchmarking not included in the original product announcement
The performance of the TDK E13 EM series can be benchmarked against alternative high-isolation automotive gate drive transformers such as the Pulse Electronics PH9400 series and Wurth Elektronik WE-GDTI series. While many standard automotive transformers utilize an EP or EFD core topology to minimize board area, the manganese-zinc ferrite core and specific package dimensions of the E13 EM series allow it to deliver a unique optimization between a high saturation current of 9 amperes and a compact 12 millimeter height profile.

Compared to competitor designs that often require customized through-hole pins to achieve reinforced insulation at comparable working voltages, this series achieves full compliance with IEC 60664-1 and IEC 61558-2-16 in a fully automated surface mount layout. The combination of a 2500 V transient overvoltage capability and an explicit partial discharge extinction voltage of 900 V provides measurable transient immunity that exceeds basic baseline requirements found in standard industrial-grade power transformers.
