N-Channel Devices For Advanced ADAS And Infotainment Platforms

Diodes Incorporated is releasing the DML1012ALDSQ, an automotive-compliant N-channel MOSFET smart load switch designed to facilitate reliable power sequencing and automotive power rail control. This component addresses voltage distribution and thermal management requirements across modern automotive domains, including advanced driver-assistance systems (ADAS), central digital dashboards, and display clusters.

Optimizing Thermal and Electrical Efficiency
As vehicle architectures integrate more high-performance computing components, managing power dissipation on the printed circuit board becomes a strict engineering constraint. The newly released smart load switch operates within an input voltage range of 0.8V to 4V, making it applicable for numerous low-voltage subsystem domains.

The primary technical advantage of the component is its ultra-low maximum drain-source on-resistance (R_DS(ON)) of 8mΩ. This low resistance actively minimizes on-state conduction losses, thereby reducing localized heat generation. Coupled with a junction-to-case thermal resistance (RθJC) of 8°C/W, the switch safely sustains up to 6A of continuous output current. Furthermore, the device maintains a low quiescent current, which improves overall power-gating efficiency and reduces battery drain during standby phases.

Integrated Safeguards For Microcontroller Sequencing
Discrete power solutions often require multiple external components to manage timing, discharge, and voltage thresholds. This integrated switch replaces discrete arrangements by combining power distribution with essential protection mechanisms within a single architecture. The device actively controls the output voltage slew rate during system start-up to mitigate inrush current, preventing sudden voltage drops on the input supply and maintaining system stability.

During shutdown procedures, integrated quick output discharge circuitry ensures that downstream load components are fully depleted of residual charge, preventing logic lockups or unintended partial-power states. Additionally, an undervoltage lockout mechanism disables system functionality if the input supply voltage drops below a specified safety threshold, guaranteeing predictable electrical behavior and protecting sensitive downstream integrated circuits. A dedicated hardware enable control pin allows for precise, microcontroller-driven power sequencing, enabling phased activation of different sensor and display clusters.

Component Form Factor And Commercial Availability

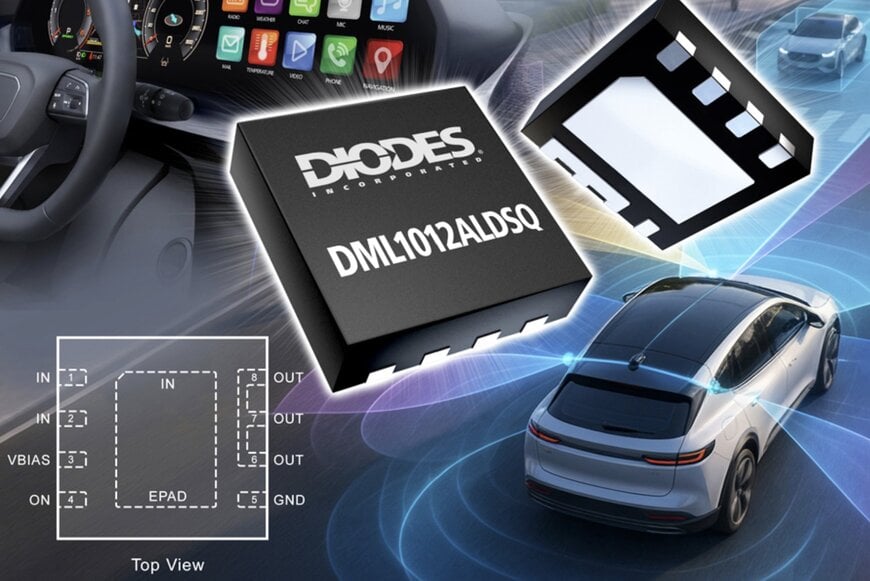

The automotive-grade DML1012ALDSQ is packaged in a 3mm x 3mm V-DFN3030-8 housing, reducing the necessary printed circuit board footprint compared to multi-component discrete circuits. For parallel applications in industrial and commercial sectors that do not require automotive compliance, a standard version designated as the DML1012ALDS is also available.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

To evaluate the position of this technology within the broader semiconductor market, it is necessary to compare its electrical characteristics with established benchmarks in the 6A automotive load switch category, such as the Texas Instruments TPS22965-Q1 or Nexperia automotive portfolios.

While comparable industry components often support a wider input voltage range up to 5.5V or 5.7V, they typically exhibit a higher drain-source on-resistance, generally measuring between 16mΩ and 25mΩ. By constraining the input voltage range to a maximum of 4V, the Diodes switch achieves an exceptionally low 8mΩ on-resistance within an identical 3mm x 3mm package size. Both the benchmarked alternatives and the newly released switch sustain continuous currents up to 6A. This architectural trade-off is specifically optimized for low-voltage, high-current logic rails in ADAS controllers, where minimizing thermal output from conduction losses is prioritized over broad voltage compatibility.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.

www.diodes.com
