Wide-bandgap semiconductor portfolios expand power density limits in artificial intelligence infrastructure

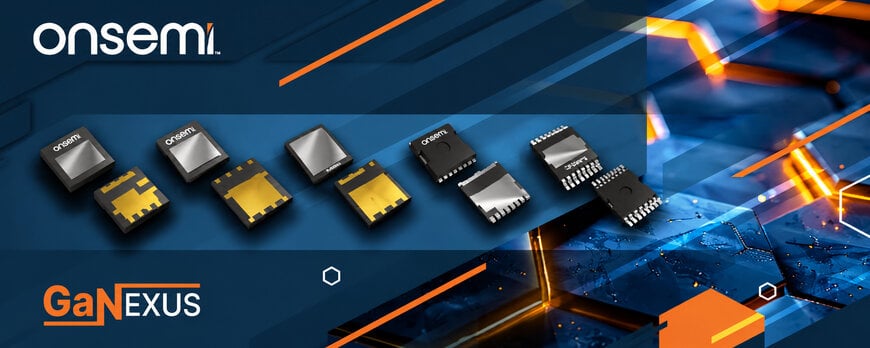

onsemi has announced the launch of its GaNEXUS gallium nitride power portfolio, designed to optimize energy conversion metrics across high-throughput data environments. This hardware deployment introduces advanced discrete and integrated wide-bandgap field-effect transistors engineered to sustain artificial intelligence data centers, industrial automation architectures, and decentralized energy distribution grids.

High-frequency switching kinematics and magnetics volume reduction
The semiconductor infrastructure relies on gallium nitride high-electron-mobility transistor technology to execute elevated switching frequencies while minimizing parasitic switching losses. Operating across voltage thresholds spanning 40V to 650V, the field-effect transistors enable power stage designers to significantly shrink the physical volume of magnetic components in resonant and power factor correction circuits. This reduction in passive component footprints yields a power density increase of up to two times compared to conventional silicon-based distribution blocks.

In low- and medium-voltage configurations, including 48V intermediate bus converters and battery backup modules, the fast-switching topologies deliver an absolute efficiency optimization of up to two percent depending on the specific topology. The devices are housed within thermally enhanced, industry-standard packages, including TOLL bottom-side cooling and TOLT top-side cooling footprints, which establishes predictable thermal dissipation pathways and facilitates multi-source manufacturing compatibility.

System-level protection integration and control loop stabilization
The architecture incorporates intelligent sensing and embedded monitoring functions within its 650V smart device variants to mitigate overcurrent and overtemperature risks at the tactical edge. By unifying gate drive functionalities and active protection metrics on a single die, the integrated circuitry minimizes system design complexity and shortens device qualification cycles. This decentralized safety grid isolates localized thermal stress without forcing central processing units to manage low-level fault detection routines.

When combined with the proprietary Treo mixed-signal platform, the control loops achieve deterministic response times under transient load spikes caused by accelerated computing arrays. This high-density integration limits the need for massive auxiliary cooling fans and complex filtering networks, improving total control stability across the full power-delivery chain.

Additional Context: This section details technical specifications and competitive benchmarking not included in the original product announcement
Within the high-performance wide-bandgap power semiconductor market, this expanded portfolio competes directly with established lines such as the Infineon CoolGaN series or the EPC enhancement-mode GaN FET family. Objective technical benchmarking indicates that while conventional entry-level discrete switches require separate, external gate driver chips that introduce parasitic inductance and increase board dead space, onsemi's smart configuration integrates protective boundaries close to the high-voltage channel. This design minimizes gate-loop ringing and stabilizes total switching cycles under severe-duty processing loads.

Additionally, the design funnel pipeline exceeding 1.5 billion dollars emphasizes substantial market traction alongside legacy EliteSiC silicon carbide implementations. However, achieving maximum efficiency gains up to 96 percent under full operating frequencies demands precise synchronization with modern power factor correction topologies, as improper gate tuning in high-voltage LLC resonant stages can introduce high reverse-conduction losses, reducing total operating cost advantages compared to specialized silicon blocks equipped with passive snubber circuits.
