How Toshiba’s New LDO Regulators Improve Power Stability

Designers of smartphones, wearables and other compact electronics often struggle to keep DC power lines stable when devices transition from low-power standby to high-speed processing. These rapid shifts create sudden load changes that can disturb voltage levels, reduce efficiency and degrade the performance of noise-sensitive components such as CMOS sensors or high-frequency circuitry. This has led to growing demand for LDO regulators with faster transient response, higher ripple rejection and smaller footprints suitable for dense PCB layouts.

Performance Advances Over Conventional LDO Solutions

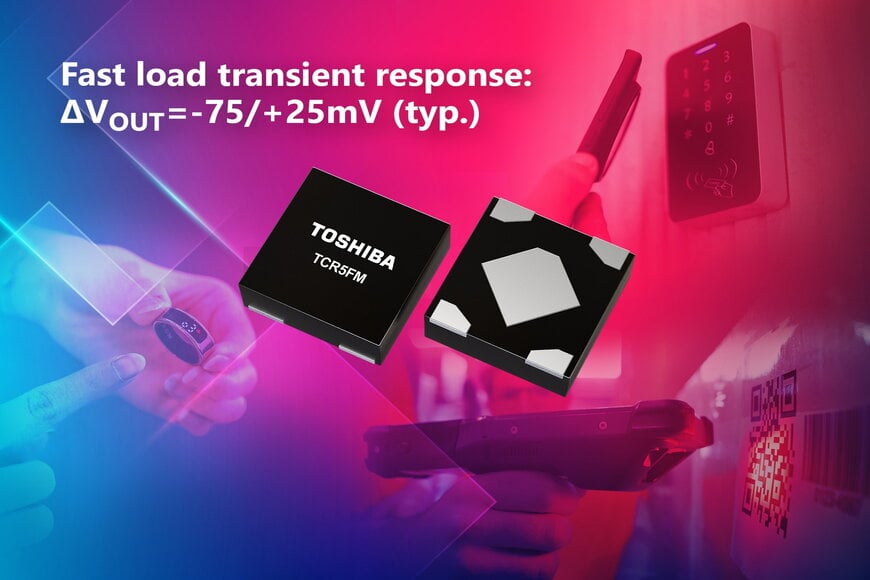

Toshiba Electronics Europe has introduced the TCR5FM series to address these requirements with capabilities that distinguish it from typical low-dropout regulators on the market. Compared with Toshiba’s earlier TCR3RM generation, the TCR5FM achieves an approximately 80% improvement in load transient response. This enables the regulator to detect voltage fluctuations more quickly and deliver faster corrective feedback, helping maintain stable output during abrupt load variations.

The series also offers enhanced noise suppression, achieving a typical ripple rejection ratio of 91 dB. This level of filtering performance is enabled by a combination of a bandgap reference circuit, an ultra-low-frequency pass filter and a high-speed, low-noise operational amplifier. As a result, the TCR5FM delivers cleaner voltage outputs suited to imaging, RF and other precision applications where competing regulators may struggle to suppress noise at similar current levels.

Power, Voltage Range and Environmental Requirements
For designers seeking stable power delivery in constrained thermal and spatial environments, the TCR5FM supports output currents up to 500 mA and an operating temperature range up to +125°C. The family spans 35 voltage variants between 0.9 V and 5.0 V, allowing direct selection for various subsystems in mobile and wearable devices. Its compact 1 × 1 mm DFN4D package further enables high-density mounting where board area is limited.

Positioning in the LDO Landscape
The TCR5FM series differentiates itself by combining fast transient response, high ripple rejection and miniature packaging—capabilities typically difficult to achieve simultaneously in standard LDO designs. This balance makes it a strong option for engineers searching for regulators that maintain power integrity during dynamic load changes while still supporting sensitive analog blocks and RF paths.

Outlook
Toshiba plans to expand its LDO lineup further as power requirements in compact electronics continue to tighten. For engineers comparing LDO options for modern mobile, imaging or high-frequency systems, the TCR5FM series offers a blend of speed, noise reduction and footprint efficiency that is uncommon among current alternatives.
