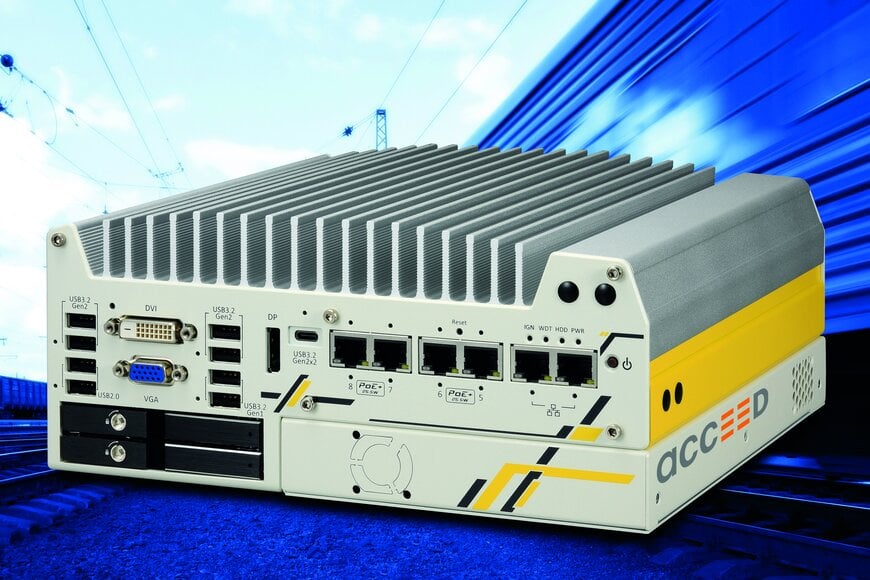

Acceed introduces Nuvo-9200VTC 24-core in-vehicle computer

German distributor Acceed has launched the Nuvo-9200VTC, an in-vehicle computer that bridges the gap between desktop-grade processing power and rugged, fanless reliability. Operating continuously in ambient temperatures ranging from –40 to +70 °C, the system supports 12th to 14th generation Intel desktop processors up to the i9 class, featuring up to 24 cores and 32 threads. Built to handle compute-intensive mobile workloads like AI inference and real-time image processing without offloading data to the cloud, the controller holds E-Mark and railway certifications for demanding transit applications.

High-density PoE+ and vibration-resistant connectivity
Engineered to power comprehensive vehicle vision systems, the controller features up to eight PoE+ ports delivering 25.5 W each, eliminating the need for an external PoE switch. Depending on the vibration profile of the deployment, buyers can specify either standard RJ45 sockets or industrial M12 screw-lock connectors. The system's peripheral suite is supplemented by one 2.5 GbE port, one 1 GbE port, up to nine screw-lockable USB ports, and a galvanically isolated CAN bus for seamless integration with vehicle telemetry networks. The platform pairs its processing power with up to 64 GB of DDR5 RAM and PCIe Gen4 NVMe primary storage.

Patented PCIe cassette for thermal management
To accommodate specialized expansion cards without compromising the system's fanless integrity, the Nuvo-9200VTC utilizes a patented, front-accessible cassette module housing a full-size PCIe slot. This expansion bay isolates and dissipates the waste heat of installed add-on cards directly through its external casing wall. For exceptionally heat-intensive PCIe cards, an optional fan cassette is available, restricting active cooling exclusively to the expansion module while the main computing platform remains completely passively cooled.

Additional Context: Desktop sockets in fanless vehicular enclosures
This section details technical specifications and competitive benchmarking not included in the original product announcement.

Traditional fanless vehicle computers generally rely on low-power, soldered system-on-chip (SoC) embedded processors (such as the Intel Atom, Elkhart Lake, or Jasper Lake series) with a Thermal Design Power (TDP) of 10 to 15 watts. While highly energy-efficient and easy to cool passively, these chips lack the multithreaded compute capability required for advanced mobile edge AI, autonomous navigation, or high-frame-rate machine vision. The Nuvo-9200VTC utilizes a standard LGA1700 socket and Intel Q670E chipset, allowing it to house true 35 W and 65 W TDP desktop processors. Dissipating 65 watts of continuous heat in a sealed, fanless enclosure at +70 °C ambient temperatures requires massive extruded aluminum heat sinks and advanced internal heat-pipe architectures to prevent severe thermal throttling, representing a significant thermodynamic engineering achievement compared to standard embedded form factors.

Edited by an industrial journalist, Lekshman Ramdas, with AI assistance.

www.acceed.com
