Nexperia Expands 650V GaN FET Portfolio for Power Applications

Nexperia has completed an expansion of its 650 volt industrial-grade gallium nitride field-effect transistor portfolio by developing multiple resistance-on classes housed across surface-mount and through-hole packaging configurations. This technical deployment provides power electronics engineers with a standardized wide-bandgap hardware base to optimize energy efficiency and thermal dissipation limits inside dense datacenter infrastructures and automated industrial drives.

Electromechanical Topologies and Package-Level Thermal Dynamics

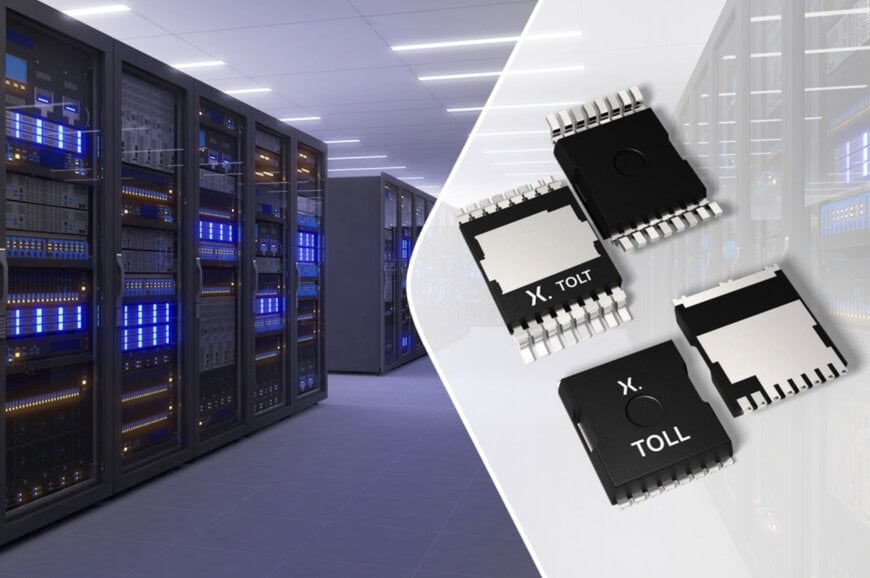

The discrete semiconductor lineup encompasses target resistance-on configurations calibrated at 35 milliohms, 50 milliohms, and 70 milliohms to balance conduction losses against silicon die manufacturing costs. To facilitate integration into existing manufacturing execution systems and layout topologies, these wide-bandgap switches are distributed across four distinct industry-standard housing styles. Through-hole layouts are supported by traditional three-lead TO-247-3 and Kelvin-source four-lead TO-247-4 architectures, while surface-mount footprints utilize TO-Leadless (TOLL) and TO-Leaded Top-Side Cooling (TOLT) options.

The selection of the packaging configuration alters the primary thermal path of the active circuit board assembly. Standard bottom-side cooled surface-mount housings route generated heat directly downwards into the underlying printed circuit board, a path that often causes a localized thermal bottleneck due to the limited dissipation properties of glass-epoxy laminates. The alternative top-side cooled layout redirects the primary thermal flux away from the board entirely, venting heat from the upper surface of the component housing straight into an attached passive or active heatsink. This mechanical reconfiguration allows automation hardware to run at maximum switching frequency parameters without inducing thermal throttling inside tightly packed electrical control cabinets.

Switching Dynamics and Stage-Level System Performance
Operating with wide-bandgap materials allows industrial power systems to surpass the physical frequency boundaries imposed by conventional silicon-based metal-oxide-semiconductor field-effect transistors. The gallium nitride substrate exhibits high electron mobility characteristics that minimize internal gate charge and output capacitance, causing a stark reduction in parasitic turn-on and turn-off energy consumption. This controlled dynamic behavior permits engineers to increase the active switching frequency of the conversion stage by multiple factors, which shrinks the physical size requirements of passive filter components and magnetics.

Real-world application benefits vary based on the specific power conversion topology and operational load line:

The physical integration of the transistors relies on a normally-off cascode architecture that couples a high-voltage gallium nitride heterostructure field-effect transistor with a low-voltage silicon gating switch. This design ensures safe, zero-volt turn-off behavior and allows standard legacy silicon gate driver circuits to drive the component safely utilizing conventional 0 to 12 volt logic thresholds, preventing gate-bounce false triggering.

Commercial Rollout Parameters and Supply Chain Timelines
The commercial distribution of the expanded wide-bandgap portfolio follows a structured, stage-gated release timeline to ensure component availability for industrial prototyping. The 35 milliohm and 70 milliohm semiconductor variants have transitioned into active commercial production across all four discrete package footprints. The intermediary 50 milliohm silicon options are undergoing final qualification testing, with full commercial release scheduled for the third quarter of 2026.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement

The deployment of gallium nitride power switches establishes a distinct operational alternative to legacy Silicon Superjunction MOSFETs and emerging Silicon Carbide (SiC) planar architectures. Traditional silicon superjunction transistors are constrained by severe reverse recovery charges within their intrinsic body diodes, an electrical trait that generates significant switching losses and limits their reliable operation in continuous-conduction mode hard-switching topologies. The gallium nitride cascode structure lacks a minority-carrier body diode entirely, removing reverse recovery energy spikes and permitting clean hard-switching transitions without risking catastrophic reverse dV/dt failures.

When evaluated against silicon carbide alternatives within the 650 volt operational envelope, gallium nitride technology exhibits superior switching speeds due to its lower specific gate charge and significantly lower output charge metrics. While silicon carbide devices remain highly effective for extreme high-voltage applications exceeding 1200 volts, gallium nitride delivers a lower overall loss profile at the 650 volt threshold under high switching frequencies. Furthermore, the availability of both bottom-side cooled TOLL and top-side cooled TOLT packages inside a single wide-bandgap product family prevents vendor lock-in, enabling power supply designers to transition their physical thermal layout from standard board-level cooling to direct heatsink coupling without modifying the underlying electrical schematic or gate-drive software parameters.
