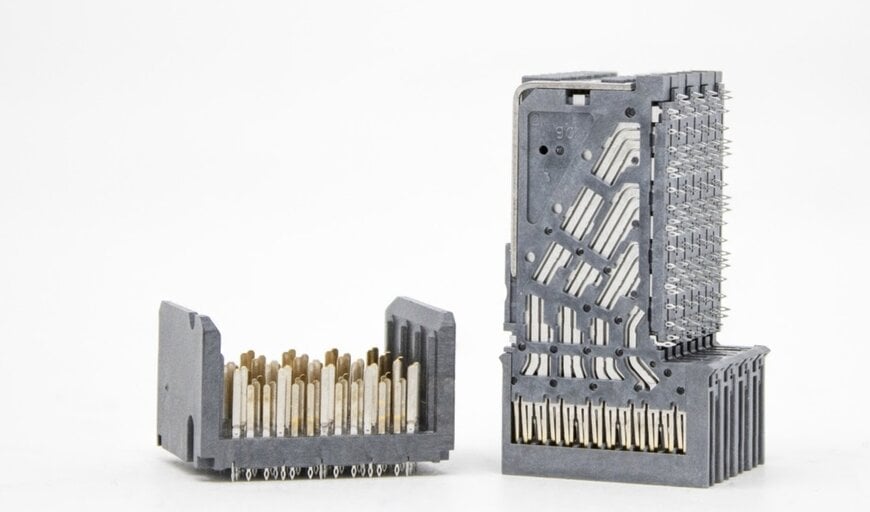

High-Density Connector Series for 56G PAM4 Systems

High-speed embedded systems in defense and aerospace applications are placing increasing demands on connector bandwidth, density, and signal integrity. In this context, Powell Electronics has made available the MIL-HD2 connector series from Amphenol, designed for 56G PAM4 data transmission in compact embedded architectures.

Alignment with open architecture standards
The MIL-HD2 connector series is designed in accordance with the Sensor Open Systems Architecture (SOSA) technical standard defined by The Open Group and supports VITA 91 requirements. These standards are increasingly adopted in defense electronics to ensure interoperability and modularity across embedded systems such as radar, electronic warfare, and high-speed communication platforms.

By aligning with these frameworks, the connector supports integration into commercial off-the-shelf (COTS) architectures, reducing the need for custom redesigns and enabling faster system upgrades.

Supporting higher bandwidth in compact 3U systems
The connector series targets 3U form factor applications, where space constraints and performance requirements must be balanced. It supports data rates up to 56 Gb/s using PAM4 signaling, enabling higher throughput within limited physical footprints.

Available in 3-, 4-, and 6-pair configurations, the MIL-HD2 series provides a high number of differential pairs within the 3U envelope. This allows system designers to accommodate increased data bandwidth without expanding chassis size, which is critical for next-generation payload and switch card designs.

Design features for signal integrity and density
To maintain signal quality at high data rates, the MIL-HD2 series incorporates design measures aimed at minimizing interference and signal loss. These include crosstalk reduction techniques, impedance matching, and electromagnetic interference (EMI) performance optimization.

The connector uses a compact 1.80 mm pitch, supporting densities between 28 and 84 differential pairs per inch. A 15.7 mil drill-compliant pin design enables deeper backdrilling, which reduces signal reflections and improves high-speed performance in multilayer PCB designs.

Mechanical reliability in mission-critical environments
The connector design includes shielded contacts that engage prior to signal contacts, providing up to 4 mm of wipe. This improves connection reliability and reduces wear during repeated mating cycles.

Support for hot-plugging allows components to be connected or removed without powering down the system, a requirement in mission-critical defense applications. Additional configuration flexibility is provided through embedded capacitor options and optimized PCB footprints, enabling adaptation to specific system requirements.

Role in high-speed defense electronics
As embedded systems in defense and aerospace platforms transition toward higher data rates and modular architectures, connectors must support both electrical performance and mechanical robustness. The MIL-HD2 series addresses these requirements by combining high-density interconnect capability with compliance to established open standards, supporting scalable and interoperable system design.
